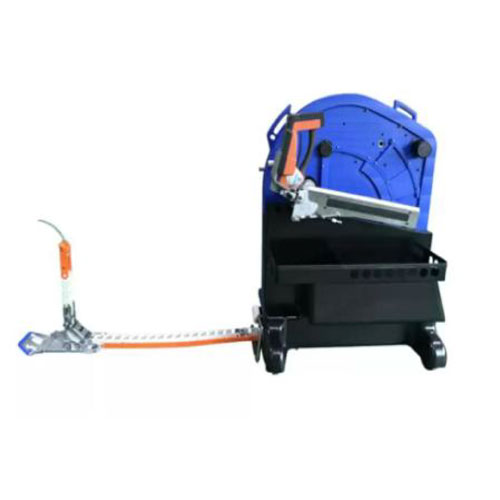

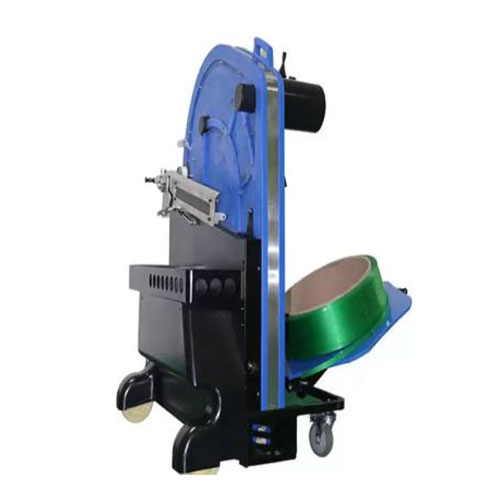

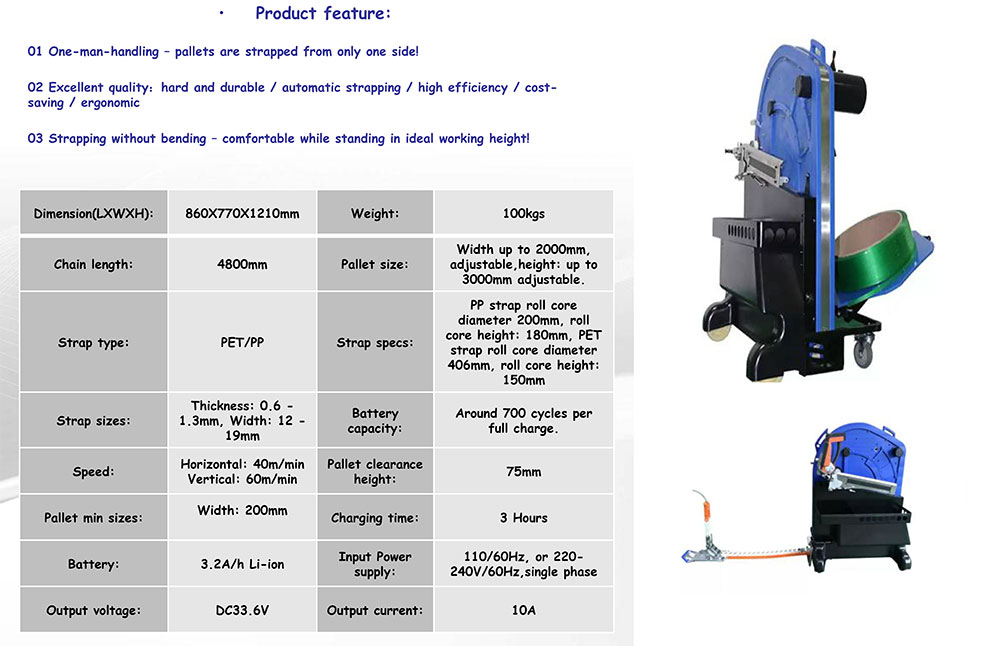

Strapping thrower
Product Features:
- A single operator can stand upright on one side of pallet.
- Tough, durable, ergonomic automation of the task.
- Avoids back strain and associated costs.
- Is separate from the strapping tool or method of your choice.
| Dimension(LxWxH): | 860x770x1210mm | Mass: | 100kg |
| Chain Length: | 4800mm | Pallet size: | Up to 2000mm width (adjustable)
Up to 3000mm height (adjustable) |
| Strap Type: | PET or PP | Strap: | Can accept strapping on the 200mm ID, 180mm width core used for PP, or 406mm ID, 150mm width core used for PET. |
| Strap sizes: | 12mm-19mm width
0,6mm-1,3mm thickness |
Speed: | 40m/min horizontal
60m/min vertical |
| Pallet inner clearance required: | 75mm height
200mm width |
Input Power Supply | 240V / 60Hz single phase |
| Pallet min size: | 200mm width | Charging time: | 3 hours |
| Battery: | 3,2A/h li-ion | Battery capacity | Around 700 cycles per full charge. |
| Output voltage: | 33,6V DC | Output current: | 10A |
